MIDI Red Valchromat 3D Assembly Square - Limited edition

IMPORTANT: ONCE THIS MATERIAL VERSION IS GONE IT'S GONE

After initial push-fit assembly, all screw holes must be piloted to the full depth of the screw using a 2.5mm or 3mm diameter drill bit.  Screws are included but drill bit is not included.

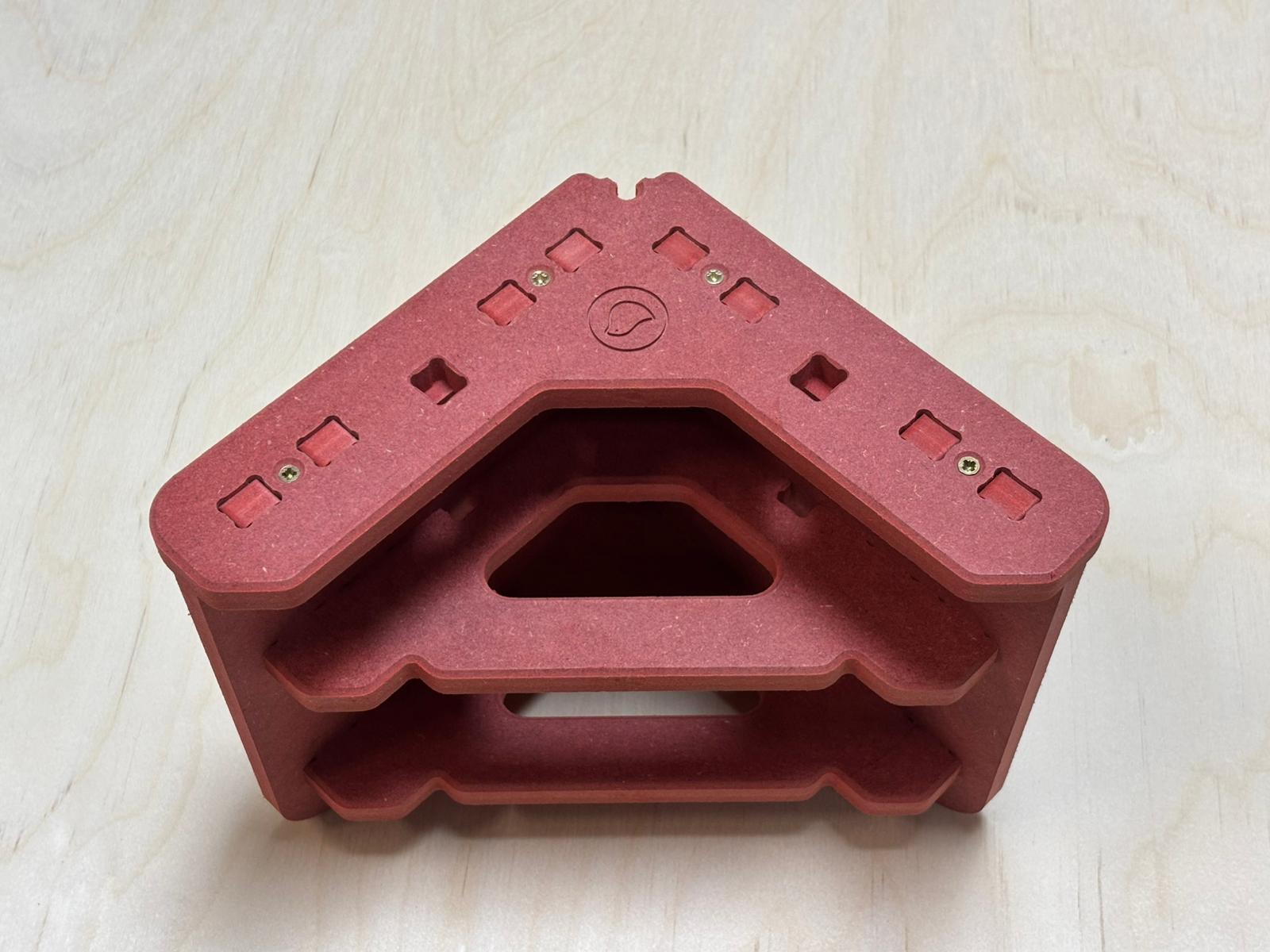

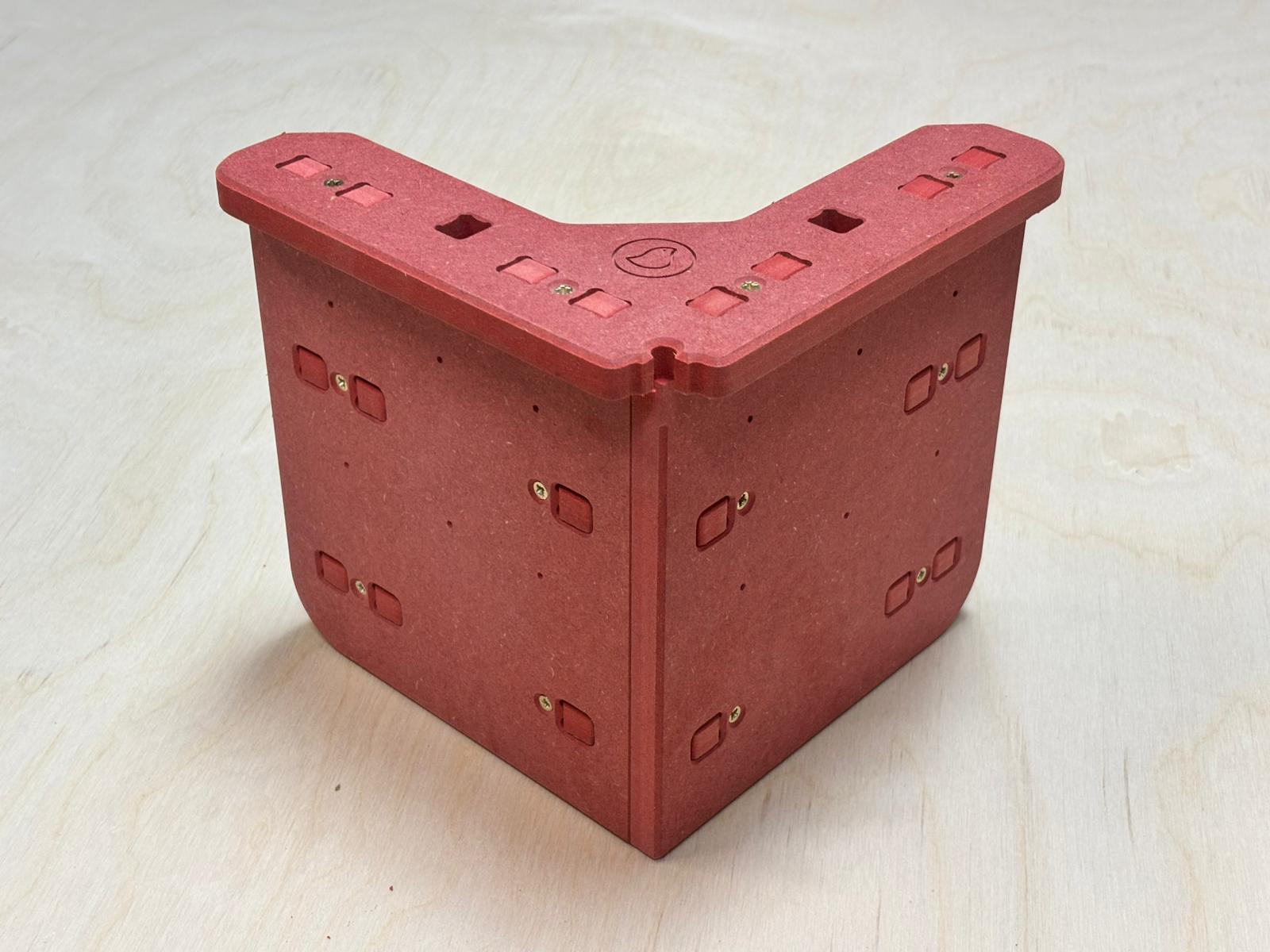

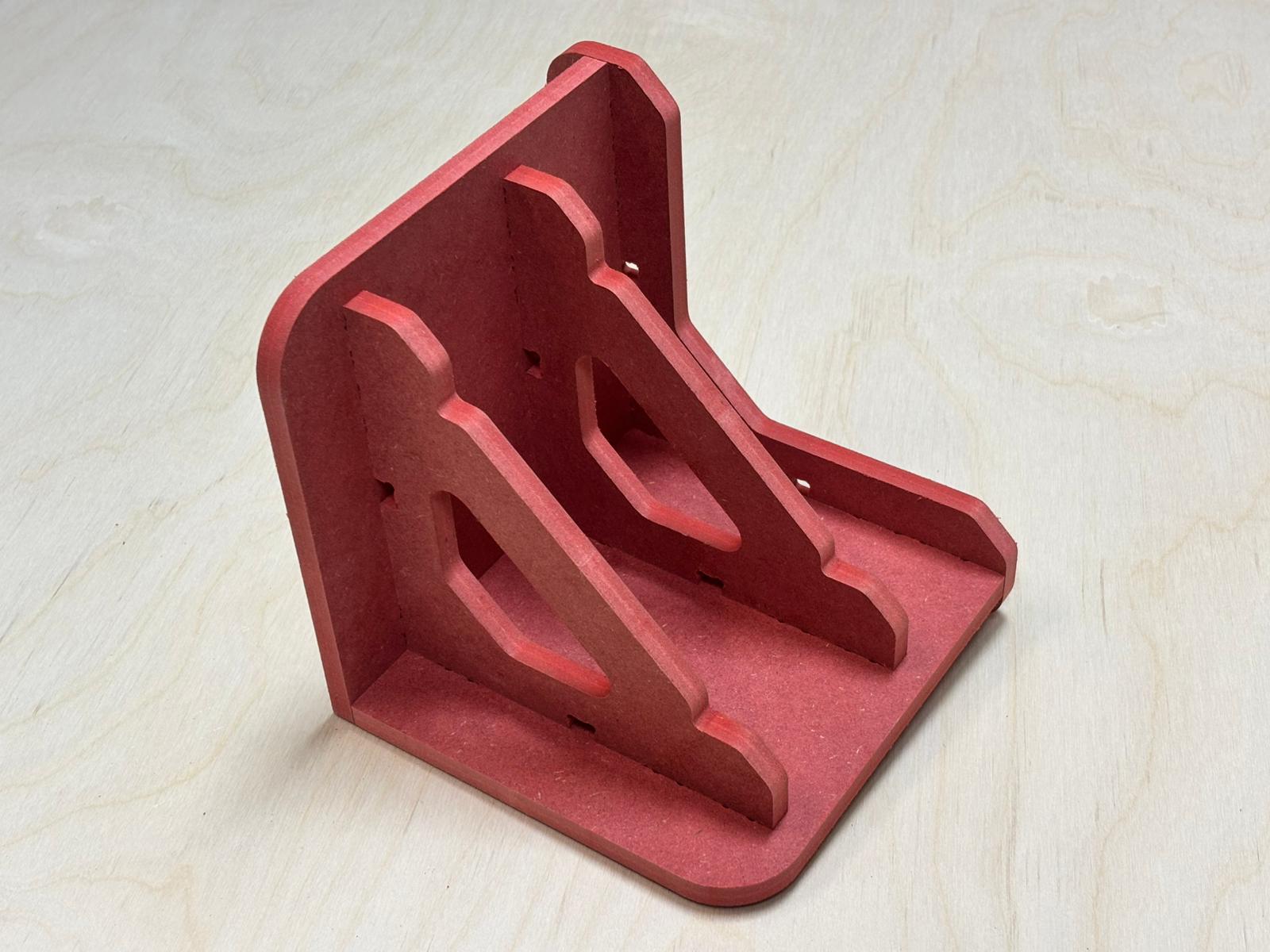

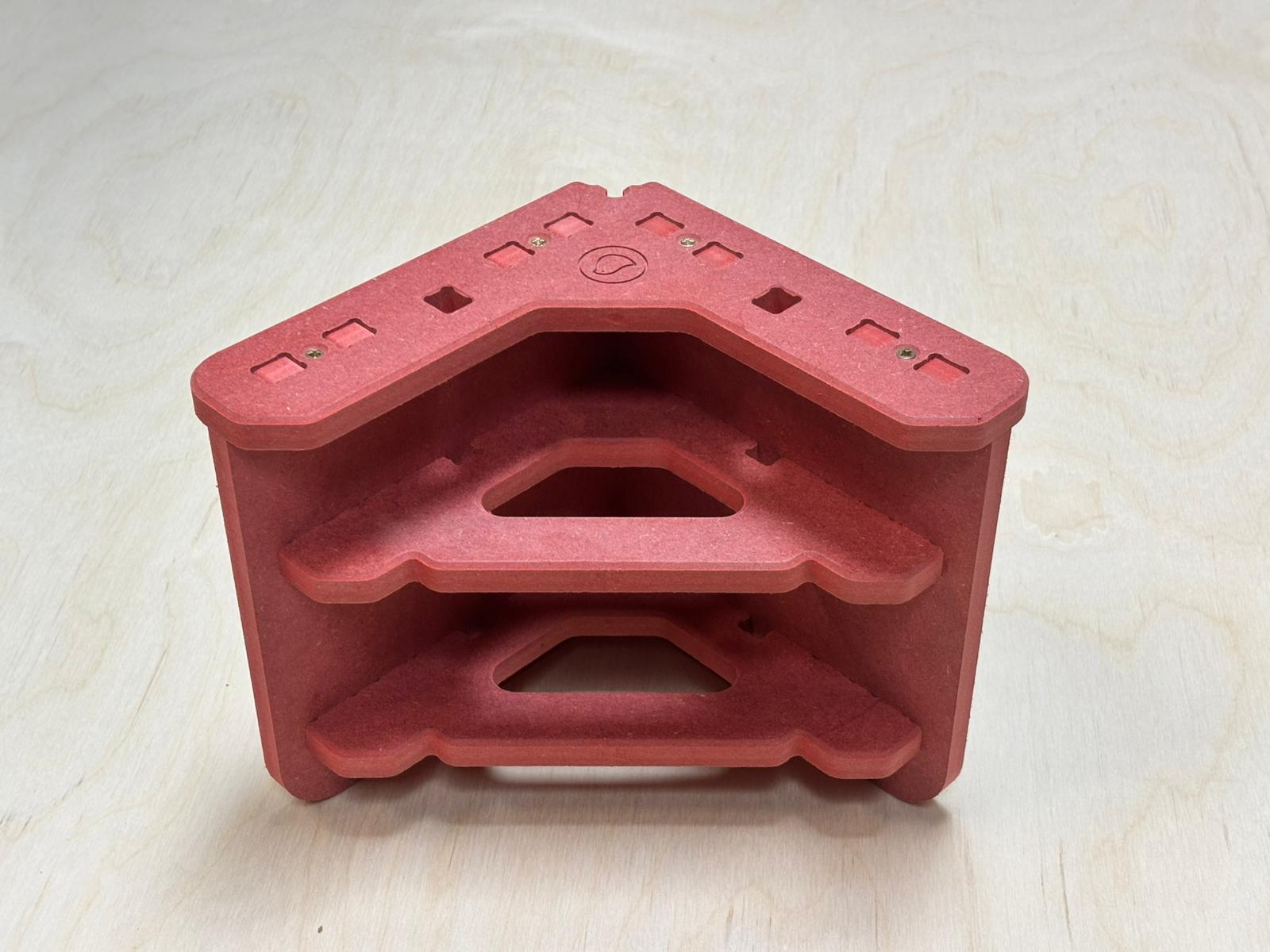

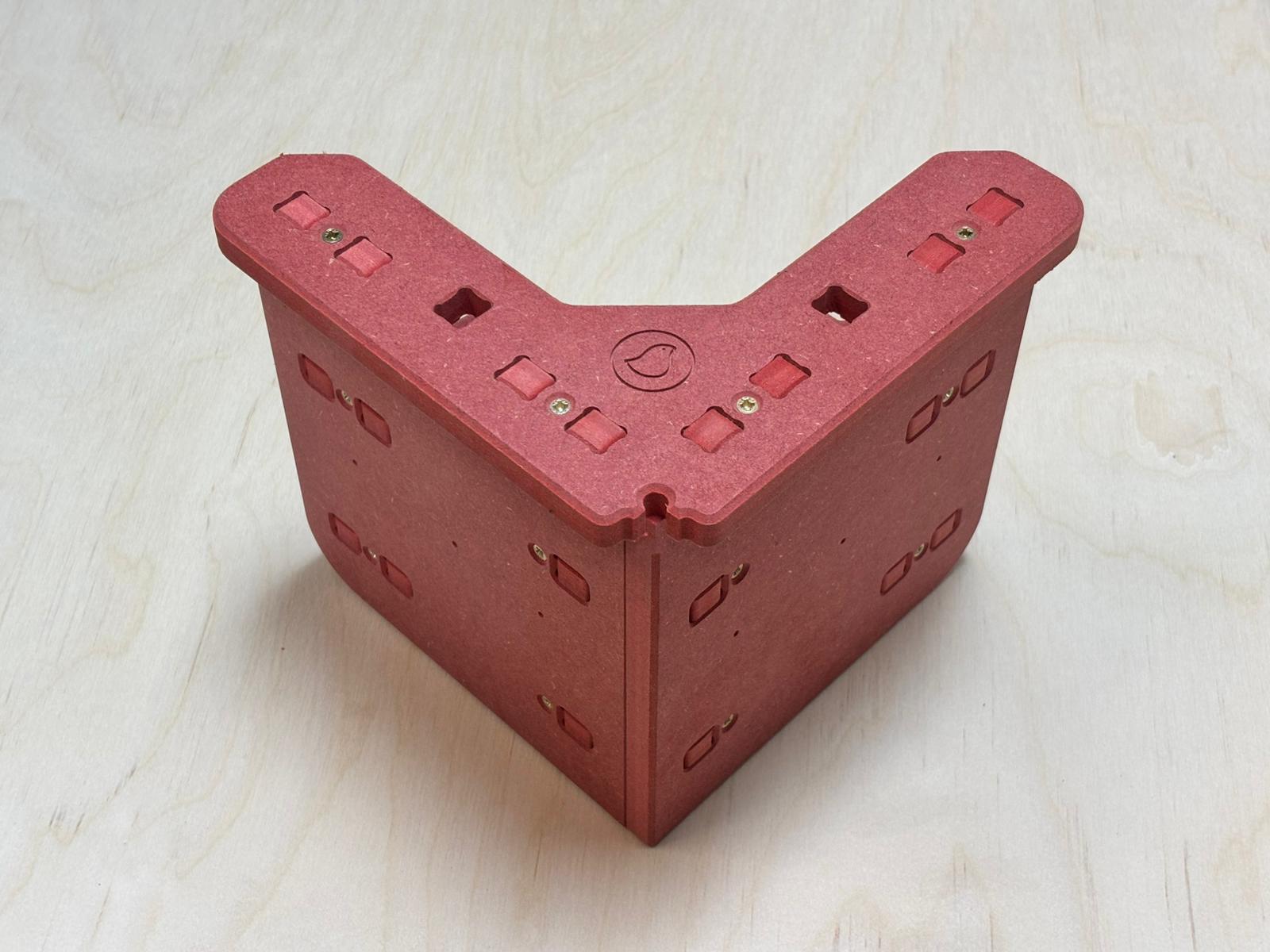

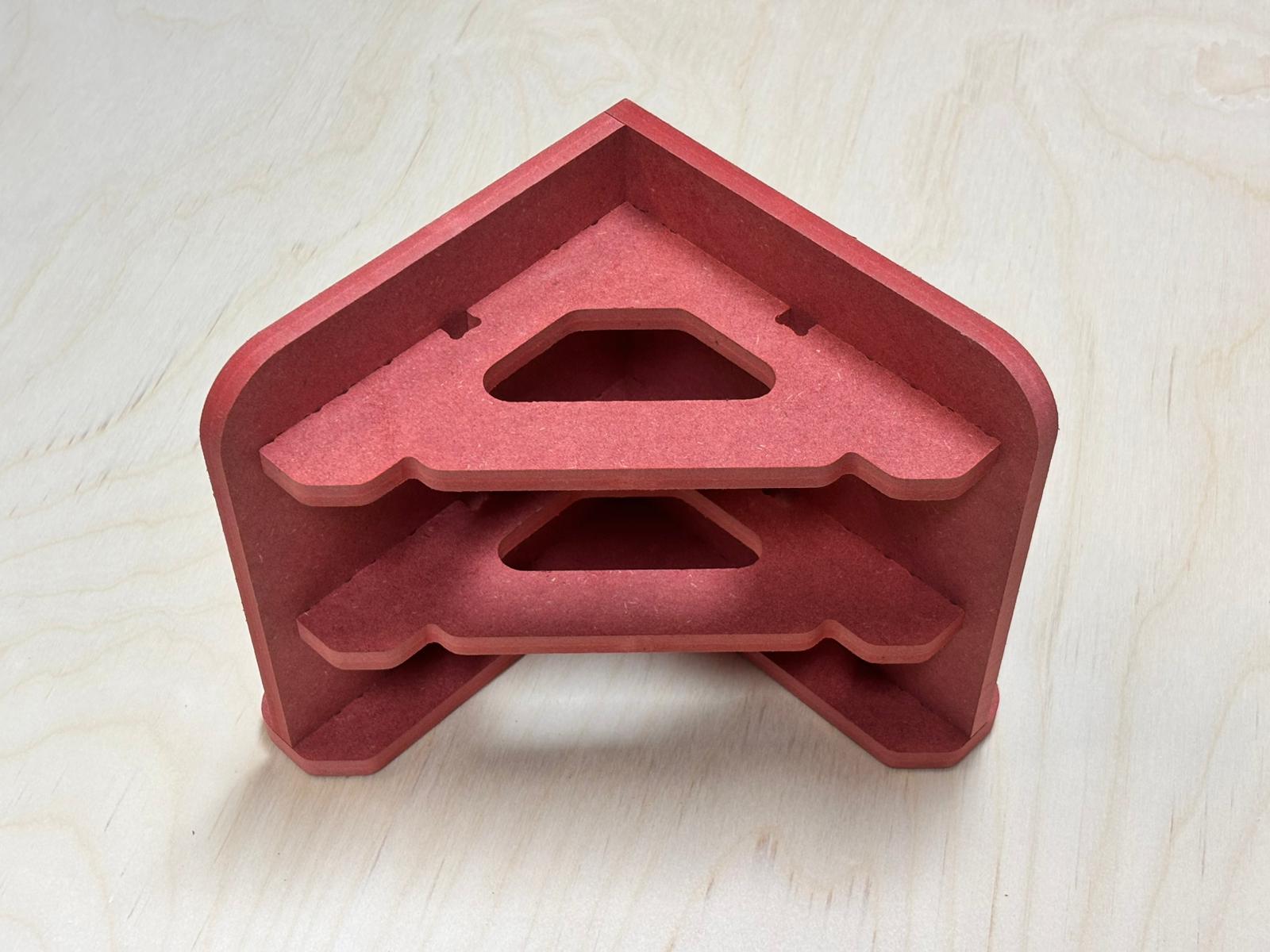

A clamping and positioning aid for fast and precise assembly of bookcases, cabinets, kitchen units and other carcase work. Tried and tested, British made, 'game changer' for professional workflows, see our reviews. As seen on Freebird Interiors' YouTube Channel.

The current design has additional clamping slots for upside down benchtop use; the shaping of the mid braces makes assembly a little easier than before; and the logo has been removed from the sides to leave a flatter uninterrupted surface. The latest assembly process video can be found via a QR code in the included postcard.

Hold parts tight and square in 3 dimensions with no fuss. Then direct-screw the joint from the outside, knowing it will remain perfectly lined up.

No unnecessary marking out.
No dominos.
No Lamello.
No time consuming 2-part joint preparation.
No wasted time or expense

Fast, Accurate, Strong joints.

Delivered flatpack for easy self assembly (see the instructional videos). Screws included. Clamps not included.

For DIY - it makes a difficult job easy with minimum tool spend.

For Trade - this will increases your efficiency and profit in the workshop or on site.

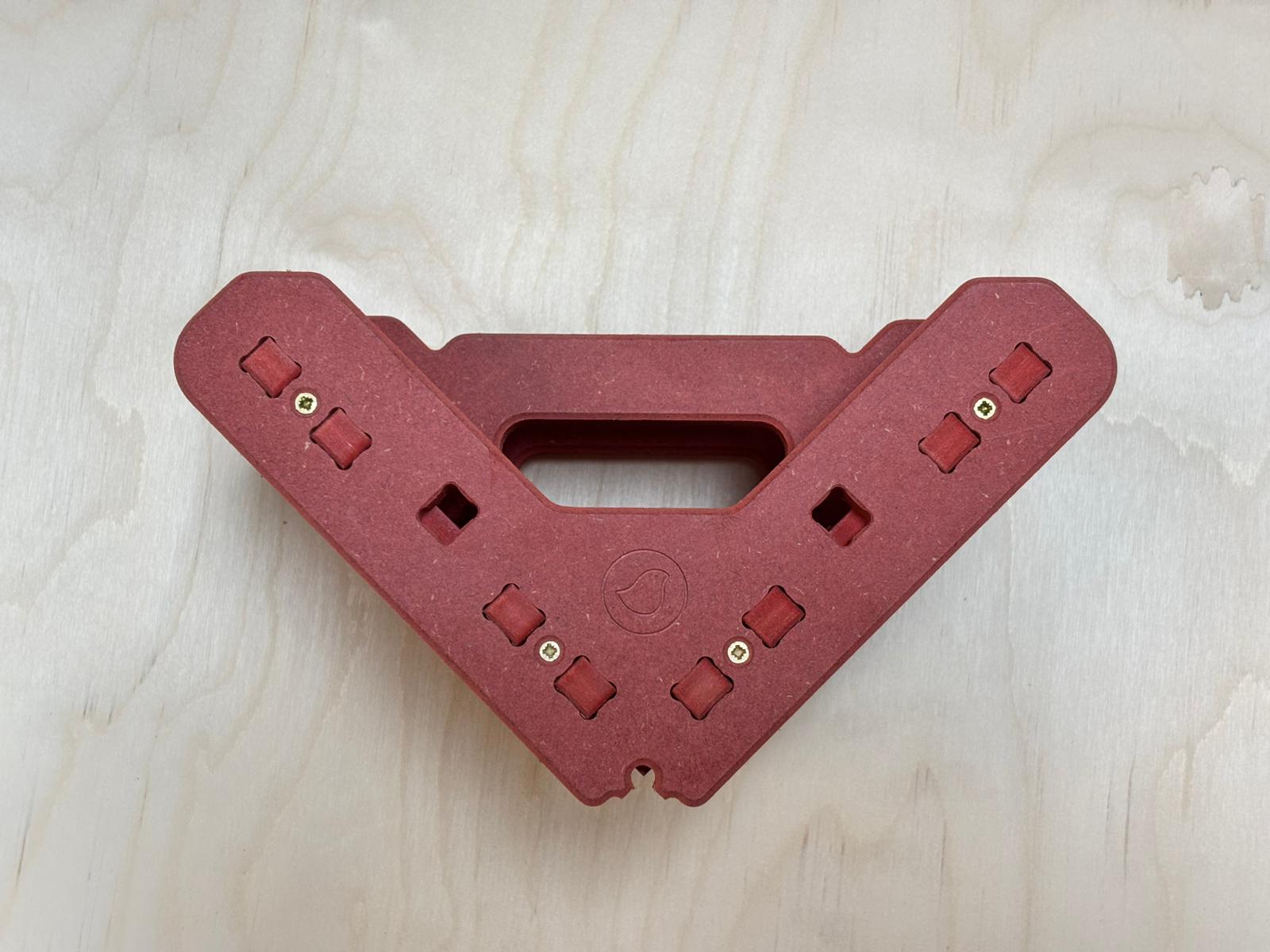

The unique corner design of the overhanging lip gives you precise visibility to allow you to line parts up to a mark on the face edge of one part only. The corner details also provides a reference for squaring the centre line of the board down the side for inserting screws.

Recommended for use with Festool or Makita-style rail clamps which can remain inserted in the jig for more efficient work. Also fits most Irwin style clamps as pictured.

We are a fitted furniture making business and we've used this jig concept for many years before refining and improving it for CNC production and sale to you. See various projects built using this jig on the display storage section of our website: https://freebirdinteriors.co.uk/display-shelving-and-media-units

We still regularly use this jig in our 2600 sq ft workshop, alongside CNC, Lamello, Festool and Mafell tools - because often it is still the best go-to solution.

Dimensions:

Height: 210mm
Max width of top plate: 210mm (same both sides)
width of main body of jig: 192mm (same both sides- allowing it to fit between shelves gaps just under 200mm apart.

Constructed from 12mm thick high density board.

Full original Jig assembly instructional video here: https://youtu.be/7pYwJWmb4sY
Full bookcase build instructional video here: https://youtu.be/Lzb2MeSNdlc
